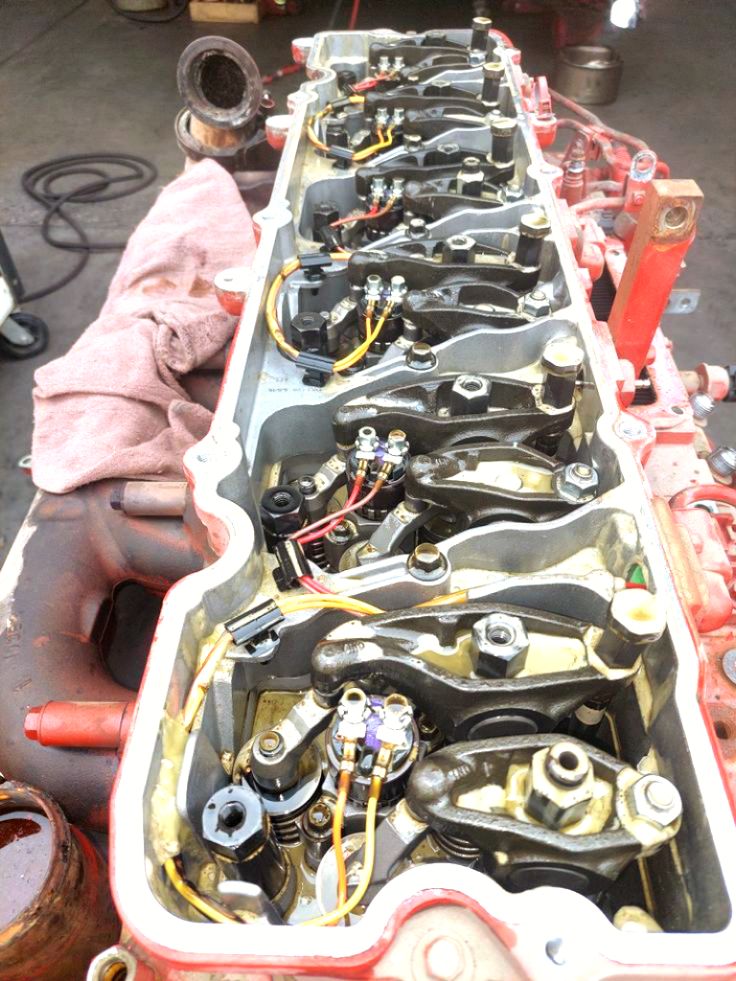

This image shows the valvetrain assembly of an internal combustion engine, specifically the rocker arms, valve springs, and injectors (or solenoids) visible inside the cylinder head with the valve cover removed.
Detailed Breakdown of What You’re Seeing:
- Rocker Arms: The black lever-like components pivot to open and close the engine’s intake and exhaust valves by pressing on the valve stems.
- Valve Springs: These springs return the valves to their closed position after being opened by the rocker arms.
- Fuel Injectors or Solenoids: The small cylindrical parts with electrical wiring likely control fuel injection or valve timing—common in modern diesel or electronically controlled engines.
- Cylinder Head: The metal body that houses all these components; it’s been exposed by removing the valve cover.
- Wiring Connectors: Electrical connections to the solenoids/injectors for controlling valve timing or fuel delivery.
What Maintenance or Repair Work Might Be Happening Here?
- Valve Adjustment or Inspection:
The valve cover is removed to check and adjust valve clearances, ensuring proper valve timing and operation. This is routine maintenance to keep the engine running smoothly. - Injector or Solenoid Testing/Replacement:
The presence of wires and connectors indicates possible work on fuel injectors or electronic components controlling the valves (e.g., in a diesel engine with electronically controlled injectors). Technicians may be testing or replacing these parts. - Cylinder Head Service:
This could be part of a larger repair, like replacing valve seals, springs, or performing a head gasket replacement. - Cleaning and Inspection:
Checking for wear, cracks, or oil sludge buildup in the valvetrain components. Cleaning and lubricating parts before reassembly is standard practice.
Summary
You’re looking at the top of the engine with the valve cover off, exposing the valvetrain (rocker arms and valves) and electronic injectors or solenoids. Maintenance here typically involves adjusting valves, testing/replacing injectors or solenoids, and inspecting or servicing cylinder head components.
